ASC 1/4 TURN ACTUATORS
CHARACTERISTICS

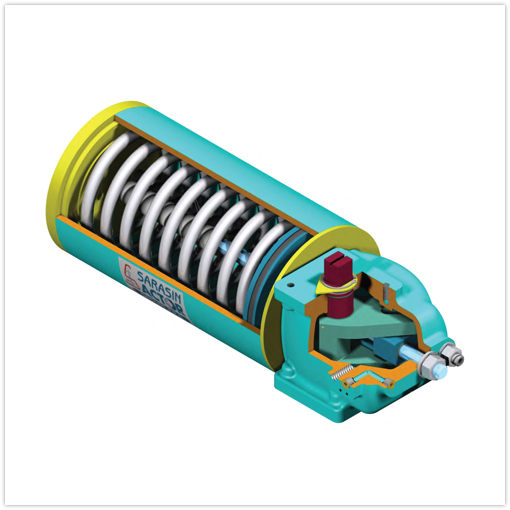

Single Acting – Fail Safe Closing or Opening : torque until 1000N.m @ 5.5 barg

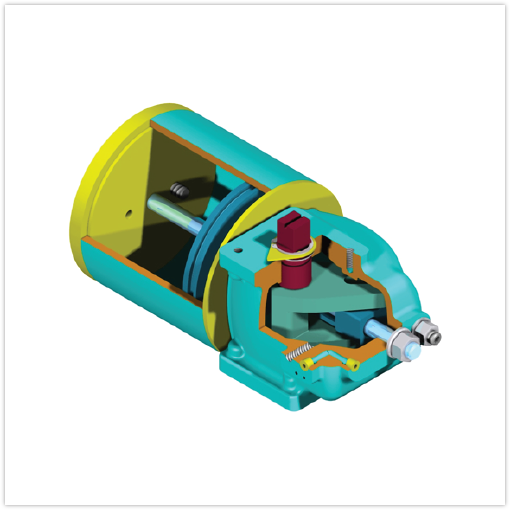

Double Acting : torque until 1500N.m @ 5.5 barg
Fluid media : air
Rotation : 0 to 90°
Temperature of use : -20°C to +80°C (on demand : + 140°C)
SUPPLY PRESSURE
2.5 barg to 10 barg depending on models
STANDARD DESIGN
Carbon steel construction
Carbon steel cylinder with Epoxy PTFE coating (others on demand)
Carbon steel alloy output shaft
Scotch-yoke design
Position indicator
Ends stops
Connections : 1/4″ to 1/2″ as standard (others on demand)
Topwork acc. to ISO 5211
OPTIONS
Control systems
Manual override
Safety tank
SS 316 housing
Fire Proofing
Special studies acc. to your request
