CHARACTERISTICS
Single Acting – Fail Safe Closing or Opening : torque until 3500 N.m @ 5.5 barg
Double Acting : torque until 7000 N.m @ 5.5 barg
Fluid media : air, water, oil, gas
Rotation : 0 to 90°
Temperature of use : -20°C to +80°C (on demand : -47°C / + 140°C)
SUPPLY PRESSURE
2.5 bar to 10 bar depends on types
STANDARD DESIGN
Extruded aluminium anodized housing
SS 316 output shaft and bolting
Scotch-Yoke design
Position indicator
Topwork acc. to ISO 5211 & NAMUR output
OPTIONS
Control systems

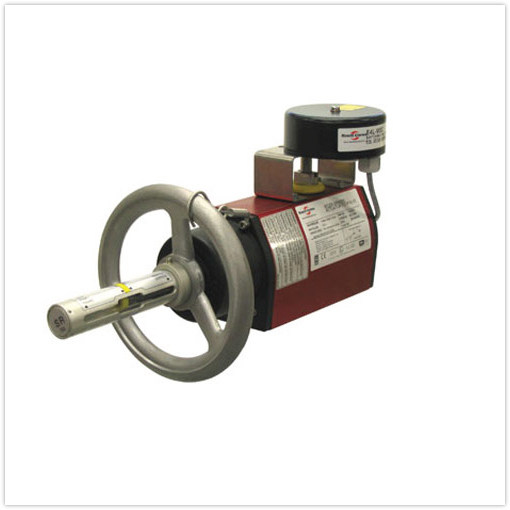

Integrated manual override
Fast strokes (under 0,2 sec)
Safety tank
Ends stops
RTN (GOST) qualification
Fire Proofing
Special studies acc. to your request :
Electro hydraulic (RCE series)
Heavy duty special coating « Tufram » (RCT series)
Multi-turn (Twin Power series)
0-180° rotation (RCR series)
3 position Dosing (DOS series)
